Industrial Paper Equipment

• Manufacture: Nash
• Model: XL 60/5
• Max Rpm: 1750
• Year: 2007
• Test No. 07D0378
• 25hp, 1770rpm, 230/460v motor

• Manufacture: Nash
• Model: XL60/7
• Test No. BR171328
• Max Rpm: 1750
• Year: 2018
• Made in Brazil

• Manufacture: Nash
• Test No. 14D1544
• Max Rpm: 2000
• Stainless Steel

• Manufacture: Nash
• Test No. 14D1327
• Max Rpm: 2000
• Stainless Steel

• Manufacture: Nash
• Test No. 13D1207
• Max Rpm: 1750
• Stainless Steel

The product name of the NDuraPlate D is derived from the term daisy, because the new designed perforation is inspired by the shape of the flower. The newly developed screen plate consists of two levels. At a lower level, the countersunk holes represent the center of the daisy. The upper level is composed of standard holes arranged like petals around the center. In interaction with a rotor, the new adjustment creates microturbulences on the plate surface. This leads to faster and better purification of the plate.

The improvements of the newly designed hole shape of the NDuraPlate D result in either a high increase of the throughput or flake and loss reduction. Production efficiency steadily increases, while the fiber percentage in the rejects remains constant. These advantages lead to significant energy savings as well as a return on investment in up to four months.

Combined with the Voith rotors for flat screen machines, the interaction with the NDuraPlate D enables extraordinary optimization of the screening process.

The product name of the NDuraPlate D is derived from the term daisy, because the new designed perforation is inspired by the shape of the flower. The newly developed screen plate consists of two levels. At a lower level, the countersunk holes represent the center of the daisy. The upper level is composed of standard holes arranged like petals around the center. In interaction with a rotor, the new adjustment creates microturbulences on the plate surface. This leads to faster and better purification of the plate.

The improvements of the newly designed hole shape of the NDuraPlate D result in either a high increase of the throughput or flake and loss reduction. Production efficiency steadily increases, while the fiber percentage in the rejects remains constant. These advantages lead to significant energy savings as well as a return on investment in up to four months.

Combined with the Voith rotors for flat screen machines, the interaction with the NDuraPlate D enables extraordinary optimization of the screening process.

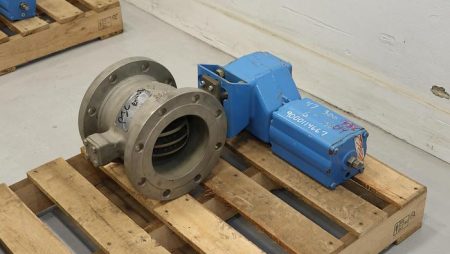

• Manufacture: Neles / Jamesbury
• Size: 4″
• Class: 150
• Material: CF8M Stainless

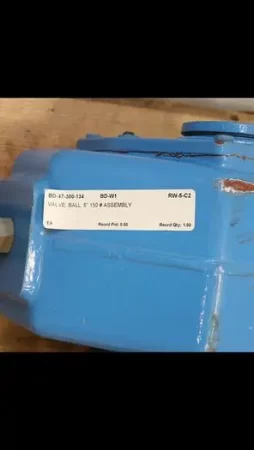

• Manufacture: Neles / Jamesbury
• Size: 6″
• Class: 150
• Material: CF8M Stainless

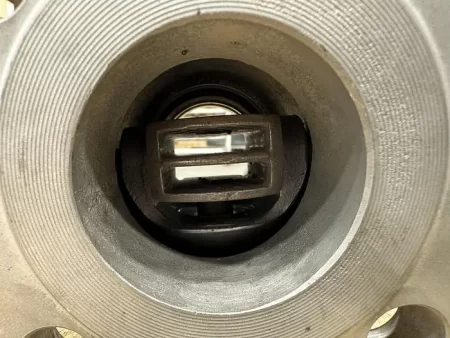

• Manufacture: Neles Jamesbury
• Model: OR21CA03AJJD
• Size: 3″

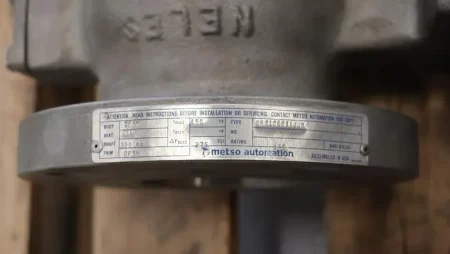

• Manufacture: Neles
• Size: 6″
• Quantity Available: 2

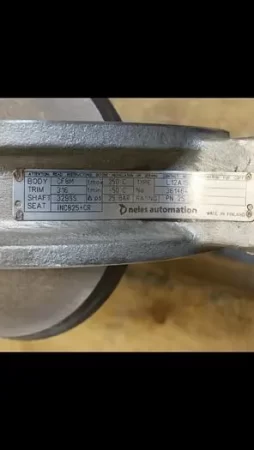

• Manufacture: Neles
• Model: L12A150AA
• Size: 6″
