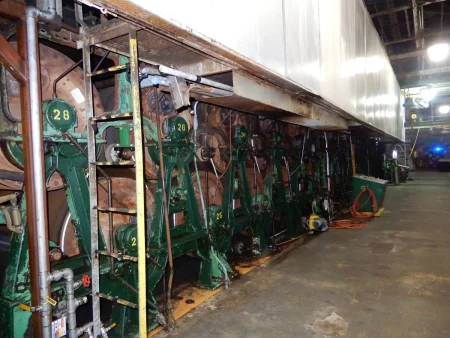

118″ (3.0M ) TRIM BELOIT FOURDRINIER PAPER MACHINE 1000 FPM (PM# 2)
Mec-Fab 130″ Slice Air Pad HeadBox MFG 1993 with (22) Automatic Profile Adjustments
Mec-Fab Cantilevered Fourdrinier Section MFG 1993
(10) Suction Boxes; Foils; Wire Tension System; Wire Showers and Trim Showers
LG Industries Suction Couch Roll 29.7″ Diameter
Dual Nip 3-Roll Combination Press Section
(28) Dryer Section 132″ Face x 48″ Diameter Rated 150 PSI
Beloit 2-Roll Vertical Size Press
Manchester 2-Roll Calendar High PLI stack with spare rolls
Measurex Model 2090 UltraTech Gauging System Scanner
Honeywell 4G High Speed Cameras
Sandar Industries Model TUSAI-E Turn-Up System
Manchester Horizontal Track Reel with primary and secondary arms
Associated Machine Design – Langston Speedmaster Slitter Rewinder 4000 FPM (Rebuilt 2002)
ALL Nash Vacuum pumps
Allen Bradley Controls
All Associated Spare rolls
Last ran 60-260 GSM
Complete Engineering and documentation available on site
Machine last ran March 2021

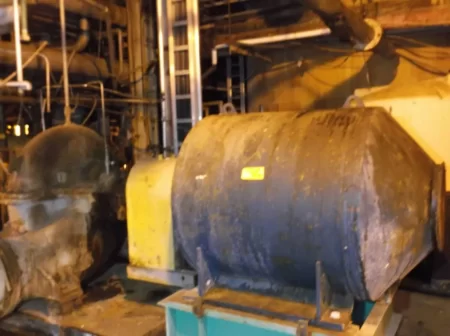

156″ (3.92M) TRIM FOURDRINIER PAPER MACHINE 2,200 FPM
MacFab S/S Air Pad HeadBox (2013) With Honeywell Model ProFlow II Position Automatic Profile
50 – 235 GSM, Dilution System installed New in 2013.
Cantilevered Fourdrinier S/S Table with (11) Suction Boxes
Suction Couch Roll 194″ Face
Dandy Roll
1st Press Hewitt Suction Press
2nd Press Plain Press Nip Roll- Blind Drilled
Dryer Section: (38)100 PSI Dryers 183.5″ Face x 60″ Diameter
Flooded Nip Size Press 182″
Manchester 2-Roll Calendar 174″ Face Rated 900 PLI
Honeywell Model 4000 Gauging System Scanner
Air Turn Up System
Voith Horizontal Track Reel 174″ Wide
Jagenberg Vari-Step 65 Two Drum Slitter Rewinder s/n 30-23922 Mfg 1987. Dual (2) 250 HP Main motors.
Complete Nash Vacuum Pump System
All Allen Bradley Drives and Controls Updated 2008 with new sectional drives Dual HZ 50/60
Nash Pumps (2) CL9002 and (1) CL6002 (1) 904 T
GE 700HP 460V #3 FAN PUMP
Last ran 50-250 GSM
All Spare Associated Rolls
Complete Engineering and documentation available at site

• 51″ Diameter
• 7-7/8″ Inside Opening
• Stainless Steel

• Manufacture:  Albright&Wilson / Tenneco Canada
• Serial Number: 9037
• Equip. No. K-2
• Year 1990

• Manufacture: Alfa Laval
• Type: MAB 104B-24-60/4108 5
• Manufacturing No. 4048684
• Worm Wheel Shaft: 1700-1800  r/m
• Revolution Counter: 95-100 r/m

• Part Number:  HAXRG902160XXHRD0-Z000060
• Manufacture: ABB

• Manufacture:  Boldrocchi
• Model: 90/120
• Compressor 3,5hp, 2.6kw, 60Hz. 600v 1700 rpm

• Manufacture: Donaldson
• Model: SPB-15
• S/N: 2012042-2
• TRB-3 BLUE
• PO: 10701475

• Manufacture: Fisher
• Model: 95H-52

• Manufacture:  Hymac
• Model:  40 HP-SF-031 MS

Features:

• Nipped Drive Rolls
• 3 Nip Press Section
• Pneumatic Panel/ Control Panel

Hymac CL-40 Cutter Layboy

Features:

• Pneumatic Control System
• Discharge Unit-Heavy Duty Scissors Lift and Conveyor
• Fixed Bed Knife and Rotary Flyknife
• Cutter Cylinder Powered by Variable Speed motor to sync with web transfer
• Pneumatic Finger Table-Automatic continuous operation of transfer between bales

Bale Handling System

Features:

• Two Speed Receiving Chain – 4′ long
• One Single Speed Inventory Chain Conveyor- 8′ long

• Manufacture: KTM
• Part No. 72122420

• Manufacture: KMT WaterJet
• Sales Order# 04090516
• Internal Job # 63999986-1
• HP Cylinder 1 Serial Number: 63770893-1
• Seal Head 1: 64001633-19
