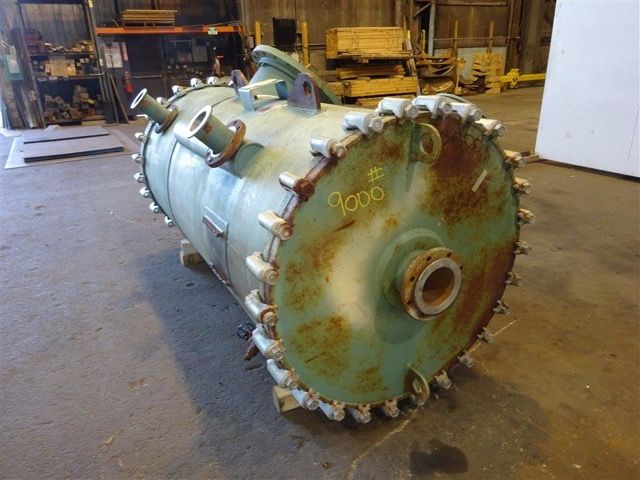

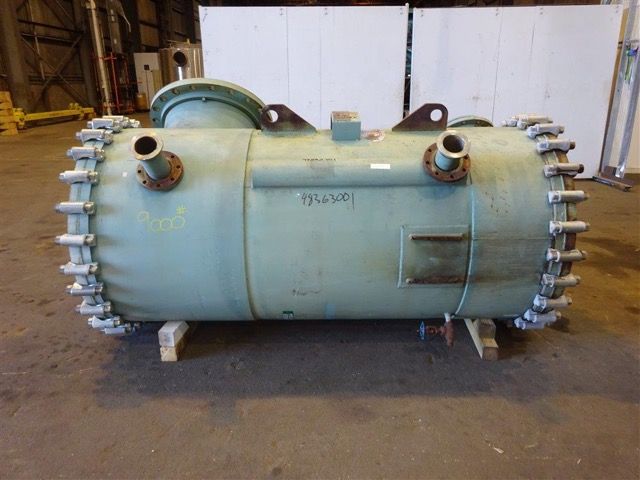

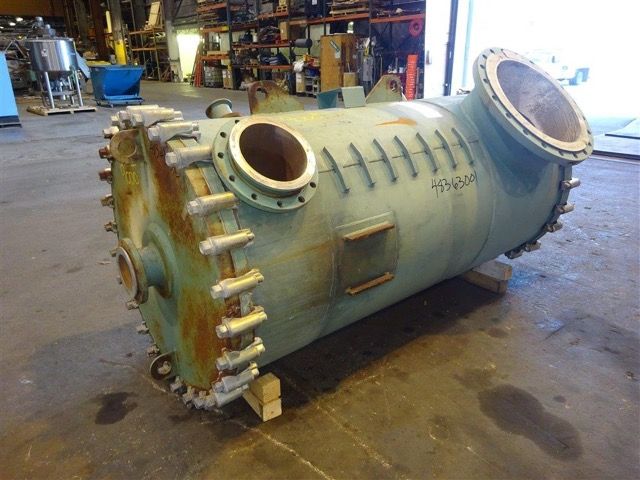

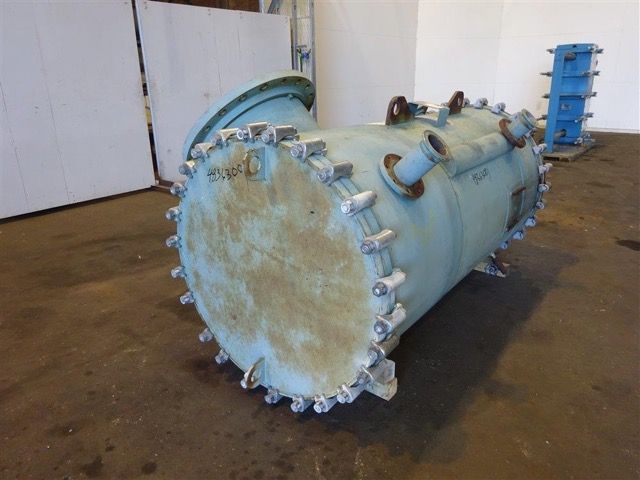

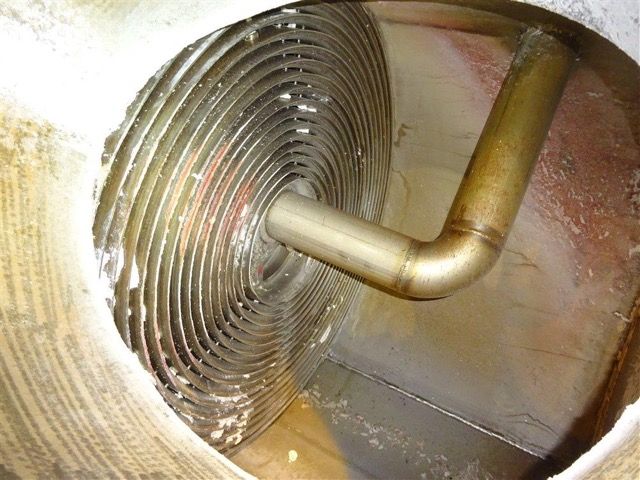

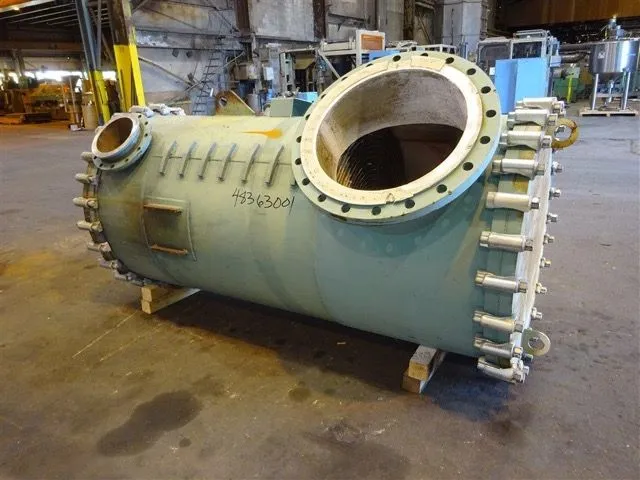

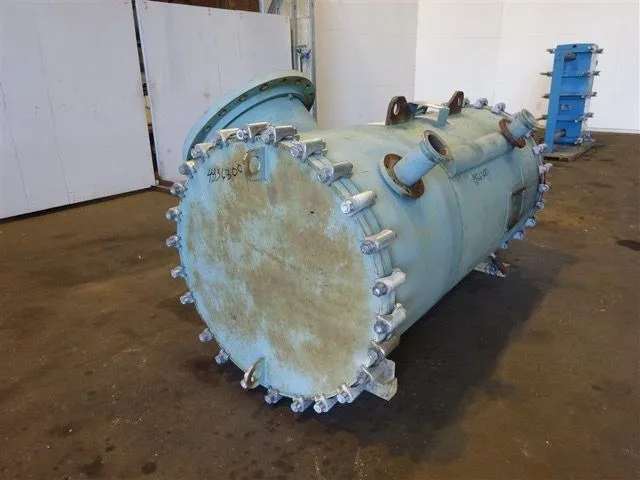

Alfa Laval Spiral Heat Exchanger type 2-VH Surface Area 995 Sq Ft
Product ID: PTA10824
- Manufacture: Alfa Laval
- HS/CS 75 FV psi @ -20 to 200F
- Year 1988

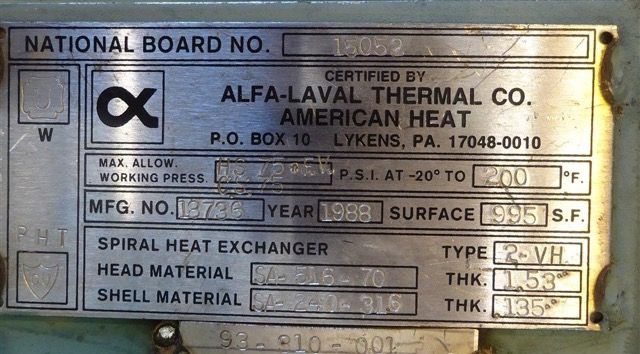

Alfa Laval Spiral Heat Exchanger type 2-VH, year 1988, head material SA-516-70; shell material SA-240-316; 75 psi @ 200F
Product PDF:
48363001_alfa-laval-thermal-vertical-spiral-heat-exchanger-hydro-test 48363001_alfa-laval-thermal-vertical-spiral-heat-exchanger-nb-15052
