Horizontal Split Case Pump

• Manufacture: Canada pumps
• Size: 8x10x15
• Material: 316ss

• Manufacture: CSF
• Model: Upon request
• Size: 10×12
• Material: 316 Stainless

• Manufacture: Flowserve / Worthington
• Size: 1.5LLR-10A
• Material: CI
• Date: July 2009

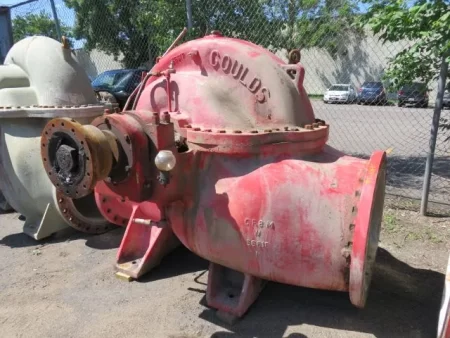

• Manufacture:  Goulds
• Model:  3420
• Size: 24×30-32
• Material: 316ss

• Manufacture: Goulds
• Type: 3408
• Size: 8×10-12L
• Body Material: CI
• Serial Number: 421561
• 1800 gpm
• 42 ft HD
• 1175 rpm
• Model Number: 100
• Impeller Diameter: 11.400 in material Bronze
• 175 psi
• Year:2000

Design Features

• Horizontally Split Casing In-line suction and discharge nozzles in lower half casing for ease of inspection/maintenance.
• Double Suction Impeller Assures Hydraulic Axial Balance for lower thrust bearing loads, longer pump life, and lower maintenance.
• Dual Volute Casing Assures Radial Balance for lower radial bearing loads, longer pump life and lower maintenance. (Not available on 3408. Availability on 3410 is size dependent.)
• Wear Rings Easily replaceable wear rings renew running clearances and protect against impeller, casing wear. Overall cost of operation is minimized.
• Sealing Flexibility Choice of packing or wide range of mechanical seals.
• Installation Versatility Horizontal or vertical mounting, clockwise/counterclockwise rotation
• Material Flexibility Available in a wide variety of metals from cast iron to stainless steels.

• Manufacture: Goulds ITT
• Type: 3408
• Serial Number: 421561 001
• GPM: 1800
• Head: 42 ft
• RPM: 1175
• Model Number: 100
• Impeller Diameter: 11.400 (Bronze Material)
• 175 psi
• Year 2000
• Identification No. 243C341PMP

• Manufacture: Goulds
• Type: 3408
• Model: 100
• Size: 8×10-12L
• Body Material: CastIron
• Impeller Diameter: 11.400″ Bronze
• Capacity: 1800 gpm
• 42 ft HD
• 1175 RPM
• Serial Number: 421561 001
• 175 psi
• Year 2000
• Identification Number: 243C341PMP
• Marathon AC Motor 30hp, 1170rpm, 230/460v

• Manufacture:  Goulds
• Model: 3409
• Size: 6×10-22
• Material: BF

• Manufacture: Sulzer
• Type: HSB
• Size: 14x14x23
• Flow: 2650 m3/hour
• Head: 1624 ft
• Rpm: 3580
• Stage: 1
• Pump Rotation: C.W.
• Imp. Trim Dia. : 20.44
• Pump Weight: 8600 lbs
• Date of Mfg: June 2007
• 4 pump Available

• Manufacture: Warren
• Size: 14×16
• Material: 316 Stainless

• Manufacture: Worthington
• Model: 5UNB-13

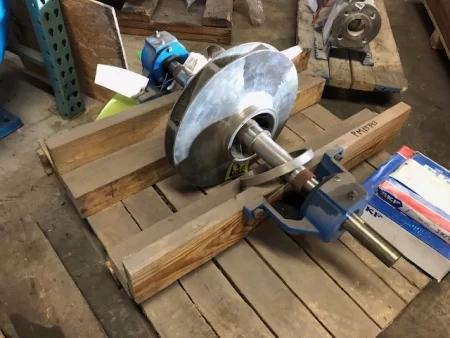

• FULL SIZE IMPELLER DIAMETER
